This Tech Doc was written to help customers with very old Snorkel PHX-II Series Installations
Operator Sensor
Installation Steps:

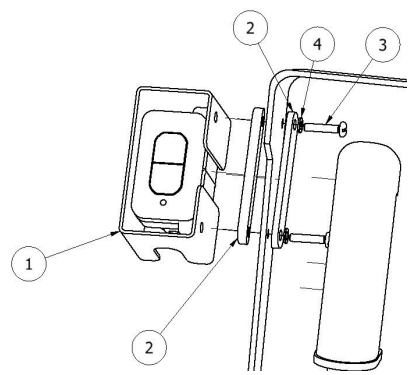

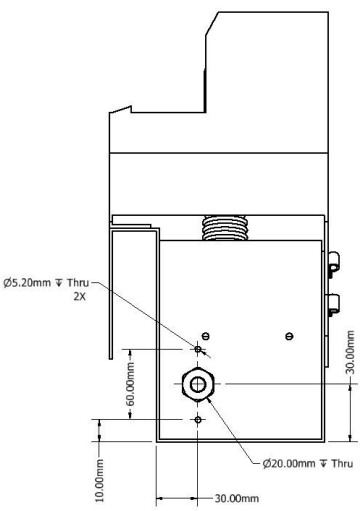

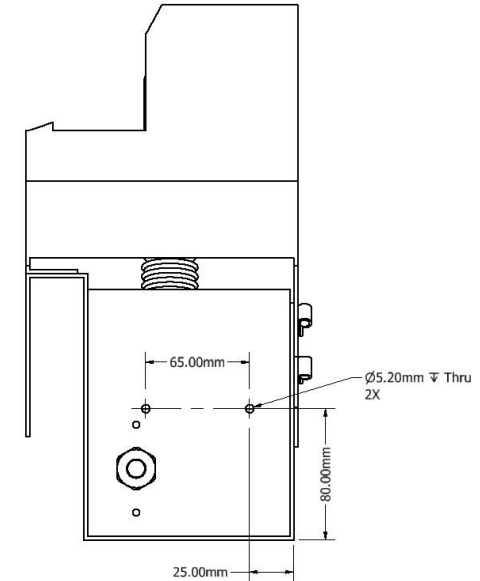

1. Drill two 5.2mm holes to
mount the operator
sensor in the position
shown in the diagram.

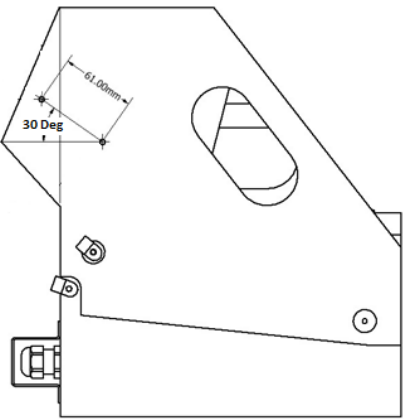

2. The sensor should be
mounted at an angle of
30 degrees.

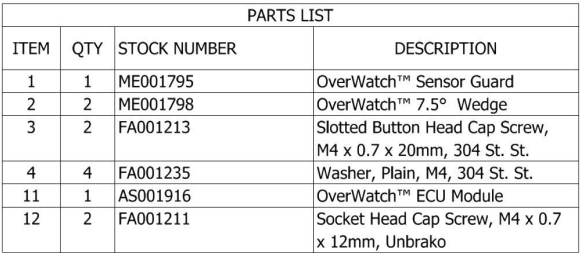

3. Mount the module in the
located position using
the supplied M4
washers, nuts and bolts.

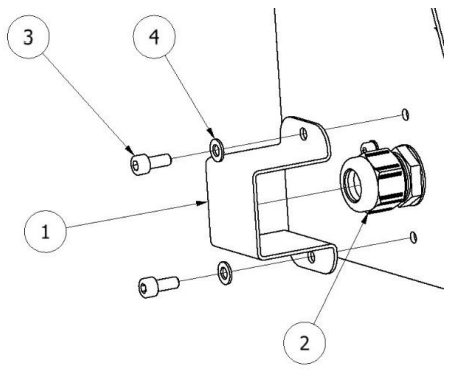

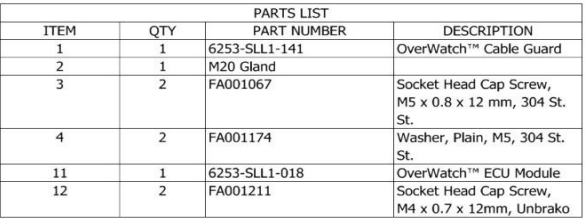

4. Drill the holes specified
to mount the operator
sensor cable gland and
guard
5. Install the supplied cable
gland in the location
shown in the image
6. Feed the wire from the
operator sensor into the
enclosure
Control Module
Installation Steps:
1. Drill the holes specified
to mount the ECU

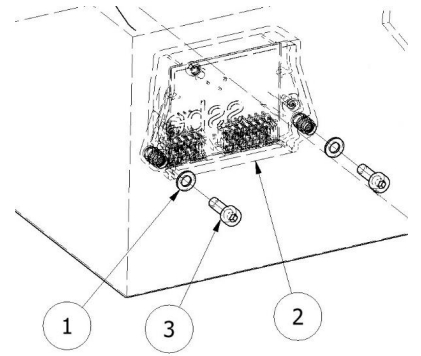

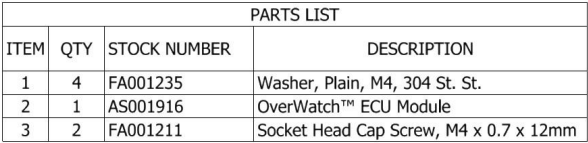

2. Mount the ECU module
using the supplied bolts,
nuts, and washers
3. From the machine
connections loom, cut

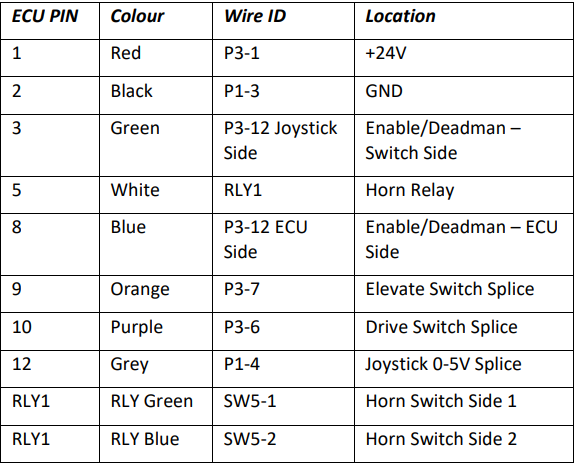

and crimp the listed wires in the table below
The connection instructions will be explained in more detail in the next few steps.

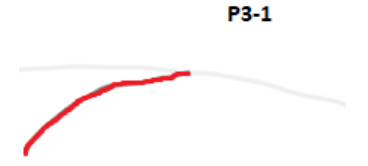

To install the system
power +24V:
4. Crimp the Red wire from
the machine connection
loom to the wire on pin
P3-1
To install the system
ground 0V:

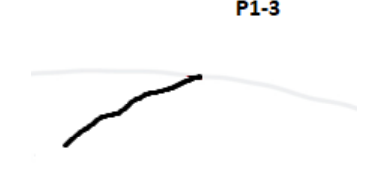

5. Crimp the Black wire
from the machine
connection loom to the
wire on pin P1-3
The Enable/Deadman
connection is on the
wire from the pin
position P3-12:

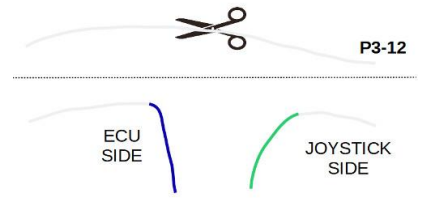

6. Cut this
wire in half and follow
these steps.
7. Crimp the Green wire
(Pin 3) from the machine
connection loom to the
joystick side of the P3-12
wire.
8. Crimp the Blue wire (Pin
8) from the machine
connection loom to the
ECU side of the P3-12
wire.
To install the joystick
input:

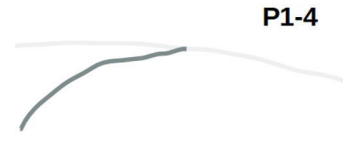

9. Crimp the Grey wire from
the machine connection
loom to the wire on pin
P1-4

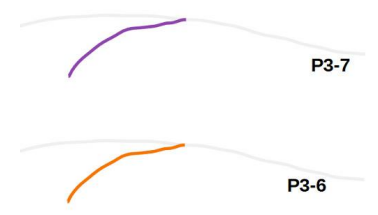

To install the Drive &
Elevate inputs:
10. Connect the Purple (Drive) wire from the
machine connections
loom to the wire from
pin P3-6.
11. Connect the Orange (Elevate) wire from the
machine connections
loom to the wire from
pin P3-7.
To install the horn
output:
12. Connect the Green wire
from RLY1 to SW5-1 and
the Blue wire from RLY1
to SW5-2.
SW5 is the
push button horn switch
Note: RLY1 is attached to the machine connection harness
13. Connect the 8-Pin
connector from the
Operator Sensor
14. Connect the
12-Pin connector from
the machine connection
harness, into the Control
Module.
15. Re-fit the joystick back
into the enclosure

Post Installation Configuration
Overview
After the Overwatch has been installed, it must be configured with the parameters to suit the machine. Follow the instructions below to configure the Overwatch.
Minimum system requirements
Any smart phone, tablet or laptop that meets the following requirements:
- The device can connect to a Wi-Fi access point supporting 802.11 b/g/n (2.4GHz) protocol
- The device has an up to date Firefox or Safari web browser installed (2019 onwards).
Wi-Fi Connection & Web Page
Access To enable the Wi-Fi connection on the Overwatch to complete the configuration follow the steps below.
1. Power down the platform control box with the ESTOP
2. Wait 10 seconds
3. Power up the platform control box with the ESTOP
4. While standing in the operator position, switch on the Overwatch
5. As the welcome chime starts to play, cover the sensor. The LED will flash white then black to acknowledge.
6. Remove your hand from the sensor. The LED will flash white then black to acknowledge.
7. After covering then uncovering the sensor this way 2 more times, "Wi-Fi On" will be announced
8. On your Wi-Fi enabled device (laptop, tablet, smartphone, etc), show the available wireless networks
9. Select the wireless network (starts with “overwatch”) to connect to the Overwatch
10. When prompted, enter the password “12345678”
11. Open your web browser (Safari or Firefox)
12. Enter the following into the address bar
http://192.168.4.1 to open the Overwatch main page
Machine Model Selection
Follow the instructions below to configure the Overwatch.
1. Select the Setup option
2. If there is a password field at the bottom of the page, follow the instructions in Change Model Configuration to obtain the password and enter the password field
3. Select the EWP Model from the drop-down list and click Set
4. Click on Proceed to Test to begin the installation test

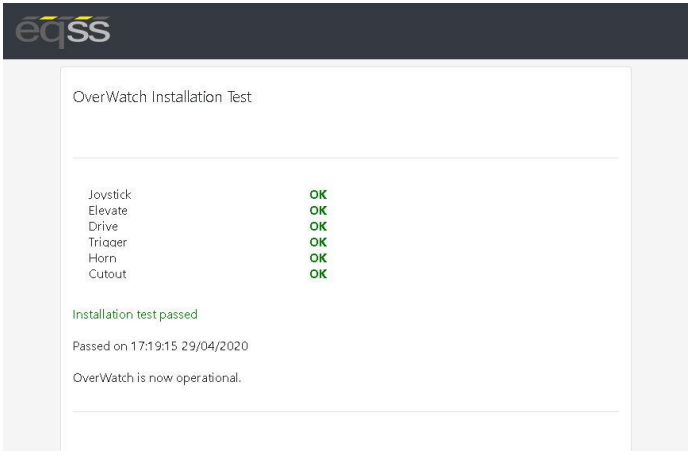

Installation Test
After the model configuration has been set or updated, an Installation Test must be performed. This will ensure the
installation has been correctly performed and the Overwatch is functioning correctly.
Follow the instructions on the web page to complete the Installation Test

Change Model Configuration
To reconfigure the Overwatch for a different model requires an authorisation password. The authorisation password is generated from the EQSS website.
Go to the
Reconfiguration page and follow the instructions to create an authorisation password.
Settings

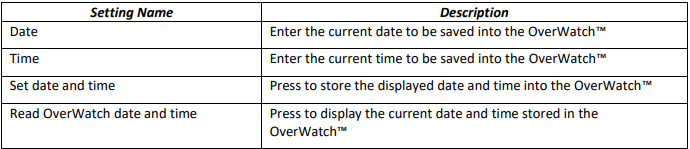

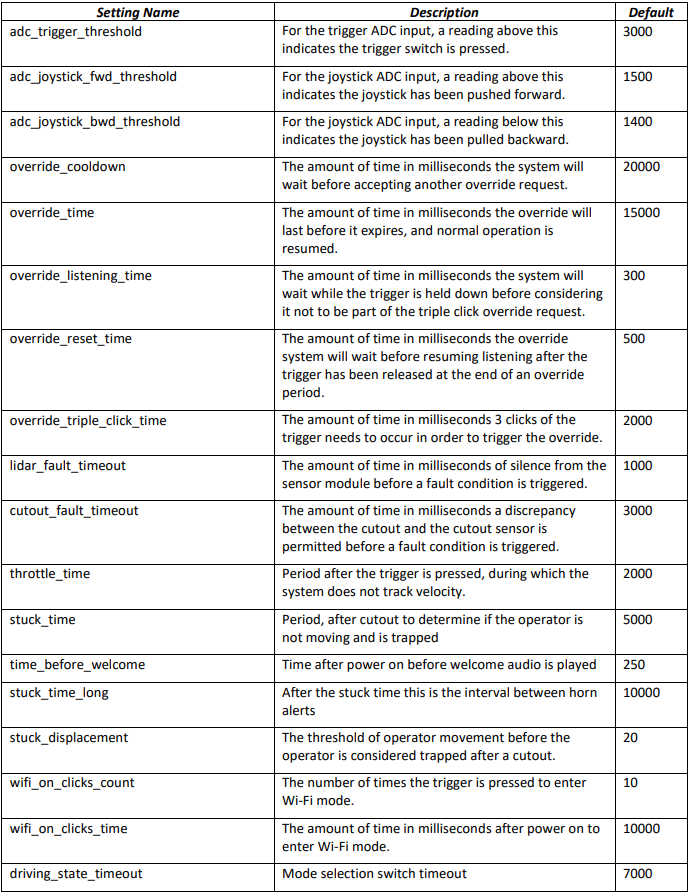

The OEM Settings page defines preset OEM parameters
See the sections below for details on each parameter:

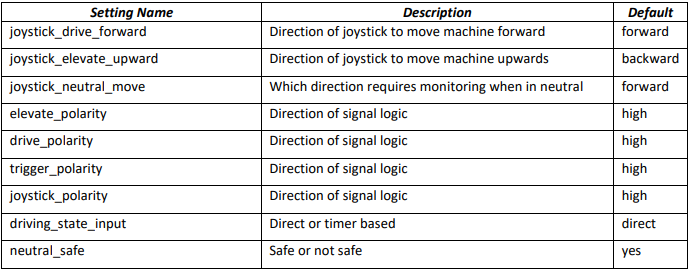

Polarity and Input Style
