Gen4 - User - Rating Chart

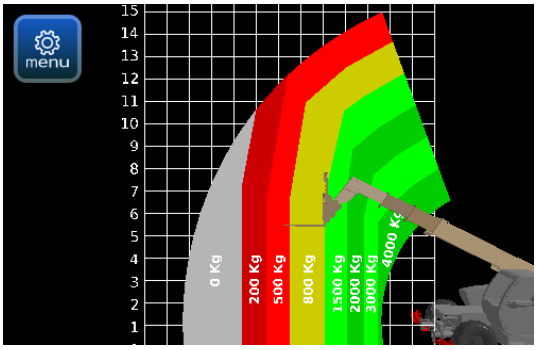

The rating chart window displays the current rating chart for the selected attachment and the stabilizer configuration.

Please be aware that it is NOT possible to use any other attachments, other than the attachments listed in a Gen 4 attachments list. Furthermore, due to obsolescence, it is also NOT possible to add any new load charts for new attachments to the Gen 4 system.

The load segments on the rating chart are color coded to match the current load.

If the segment is green and the boom was moved inside the segment the rated capacity percentage would be between 0% - 79%.

If the segment is yellow the capacity would be between 80% - 99% in that region and if red the capacity would be 100%+ in that region.

This allows the operator to lift the load and determine the boom range before the lift is performed. The rating chart also has an image of the telehandler showing the current boom location within the chart. The telehander image also changes the attachment to match the currently selected attachment. When both stabilisers are lowered the telehandler image is updated to reflect the new stabiliser state. The current position within the chart is shown via crosshairs. With the chart grid in 1 metre increments the operator can determine the distance the load can be moved.

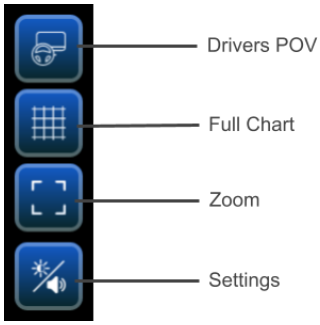

Press the on-screen button within the rating chart area to display the different rating chart view options.

Drivers POV – This view shows the rating chart from the perspective of the driver

Full Chart – This is the default view and it shows the entire rating chart.

 Zoom – This view zooms into the rating chart (centered around the current load position). The zoom can be changed by pressing the icons in the bottom right corner of the rating chart. The rating chart view will remain centered around the current load position even when the boom moves.

Settings – Press this button to access the display setting options. See Display Settings for more details on the display settings.
