Gen1 - Installation Deici Icarus 40.17 Gen 1 to Gen 3 - Cable Reeler Installation

Gen1 - Installation Deici Icarus 40.17 Gen 1 to Gen 3 - Cable Reeler Installation

Notes
The cable reeler contains the sensors required to measure the boom extension and boom angle to allow the Gen3 LMS to calculate the boom position.

The GEN3 and GEN1 cable reelers are mechanically identical and can be directly swapped over.


Use the same stow switch trigger bracket and the cable anchor from the GEN1 for the GEN3. The stow switch arm may need to be adjusted so that the switch is triggered when the boom is fully retracted. Attach the cable reeler wire to the GEN1 cable anchor on the first extending boom segment.

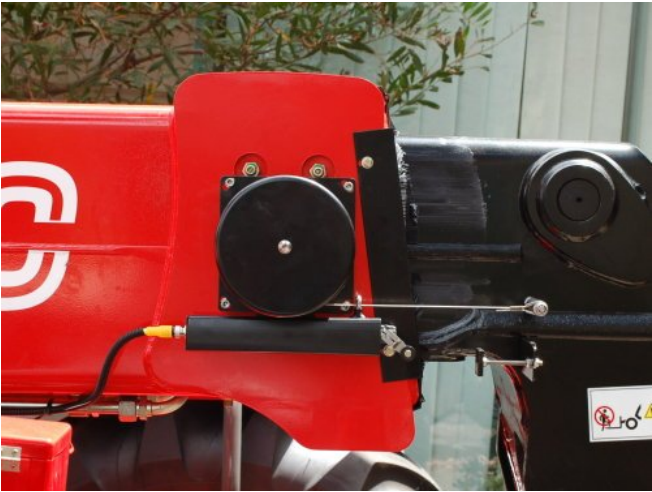

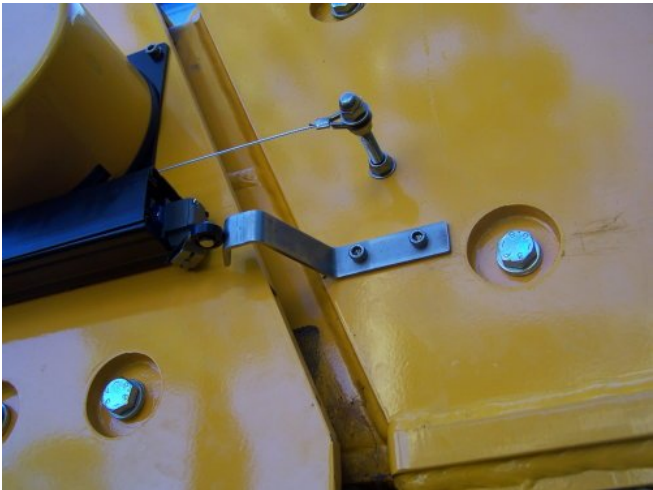

Below: GEN1 Stow Switch Bracket and Anchor on Icarus 40.17


Once the cable reeler is installed:
  1. connect the supplied 4-Pin 10 metre cable to the M12 screw lock connector at the rear of the cable reeler (referred to as the boom cable).
  2. Secure the boom cable down the fixed hydraulic lines running down the boom, using cable ties every 200 mm, following the same path as the existing GEN1 cable.
  3. Cable tie to the flexible hydraulic lines connected to the boom, ensuring that the cable does not stretch when the boom is raised or lowered.

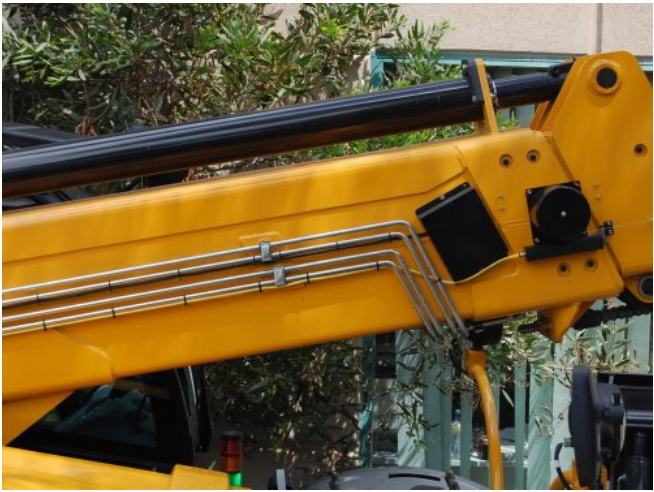

Below: Cable Attached to Hydraulic Lines Down the Boom


Alert
 On some telehandlers, the boom may extend a small amount when the hydraulic system is pressurised. If this small extension causes the stow switch to be released, the Gen3 LMS will produce a system fault. Ensure that the arm is triggered and is rotated forward as much as possible so this does not occur.
