Gen3_ITC - Installation - Volvo L120H & L90 Boom Angle Sensor Installation
The Boom Angle Sensor is used to determine the inclination of the boom relative to the
initially calibrated machine angle.
Installation Steps:
1. Drill two M6 holes for the Angle
Sensor in the position on the arm
Shown in the diagram.
2. Mount the angle sensor using the
supplied M6 bolts, with the M12
connector facing downwards.

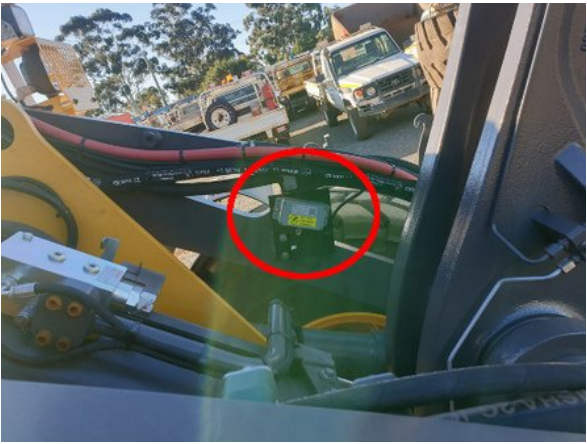

Below: Volvo L120H angle sensor
Below: Volvo L90 angle sensor
3. Attach the 4 way M12 cable to the
sensor and route the cable to the
CCIM following existing cable paths,
using cable ties to secure the cable.
