ITC SWL- Hitachi - Installation Outline

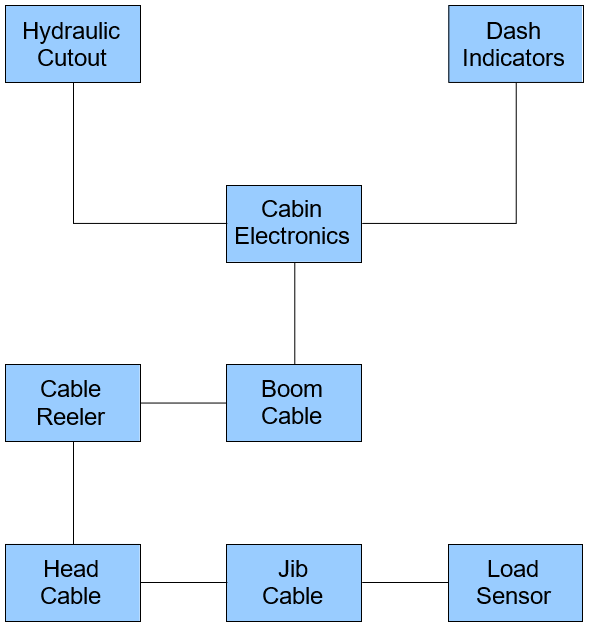

The diagram below outlines the installation components of the Hitachi MCL

Maximum Capacity Limiter Installation Outline

• Related Articles

• ITC SWL- Hitachi & JCB - Cabin Electronics Installation

  The cabin electronics interface into the load sensor and produce the required cutout. Installation Steps: Install the indicator and override switch into a two spare housing in the dashboard. Below: Overload Indicator & Override Switch The switch ...

• ITC SWL- Hitachi - Cable Reeler Installation

  The cable reeler is used to supply the electrical signals to the sensorThe cable reeler should be installed on the reinforcement plate at the top of the base boom section on either the cabin or engine side of the boom (depending on the cable reeler ...

• ITC SWL- Hitachi - Boom Head Cable Installation

  The boom head cable connects between the cable reeler and the jib cable. It is also connected to the blank plug connector when the jib is not in use and has been removed. Mount the blank plug connector next to the cable reeler connector. Below: Blank ...

• ITC SWL- Hitachi - Jib Cable Installation

  The jib cable connects the load sensor to the cable on the boom head. Mount the jib cable connector in a location that it is easily accessible for the operator. Below: Jib Connector Run the cable along the jib as close to the structure as possible to ...

• ITC SWL- Hitachi - Load Sensor Installation

  The load sensor measures the load attached to the hook of the jib and if the load is greater than the set weight it signals an overload back to the cabin electronics. The load sensor is installed between the jib structure and the hook. Remove the ...
