Underwatch - Installation - Finalization

This Tech Doc was created to help finalize the Underwatch installation
Installation Steps:

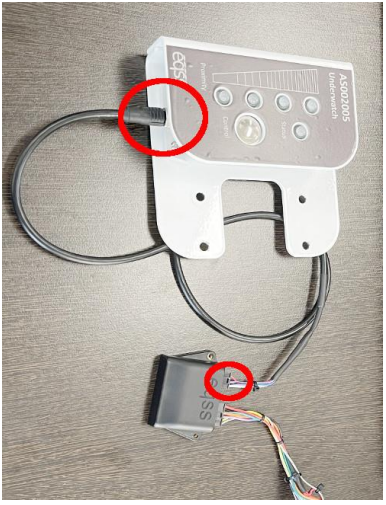

1. Connect the 8-Pin
connector from the User
Interface harness to the
ECU
2. Connect the M12 screw
lock connector to the User
Interface Module.

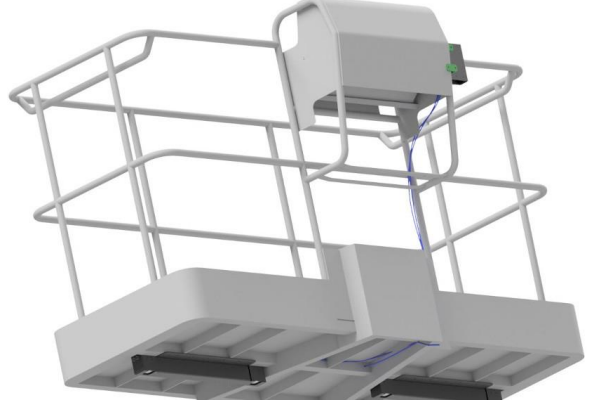

3. Run the cable from the
sensors to the control box.

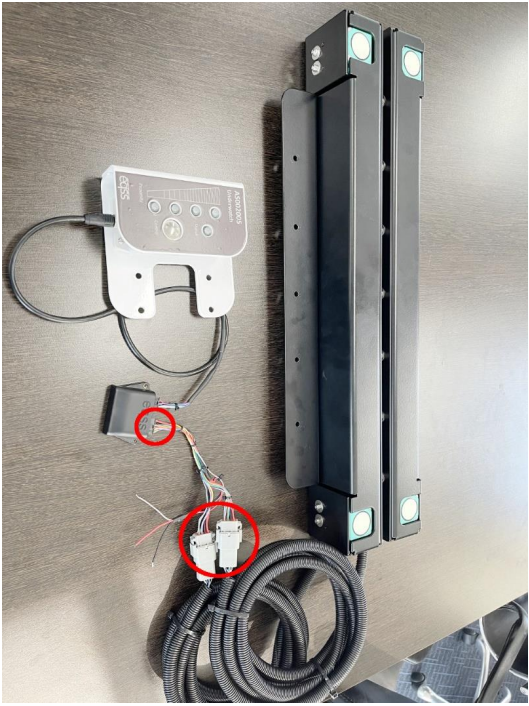

4. Connect the 12-Pin
connector from the ECU
harness to the ECU.
5. Connect the other side of
the harness to the two DT
connectors from the
Sensor Bars accordingly.
6. Use supplied Velcro to
mount ECU inside control
box.
