Underwatch - Installation - Sensor Bars

Underwatch - Installation - Sensor Bars

Notes
This Tech Doc was created to help a competently trained technician, install and fit the sensor bars
Installation Steps:

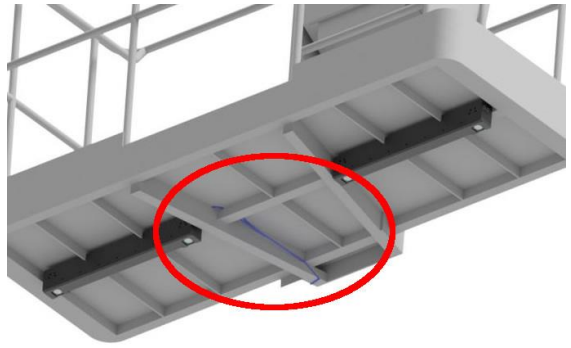

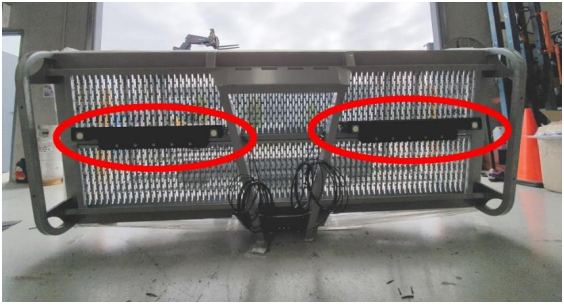

1. Position the Sensor Bar in the location under the basket (shown in the image below).
2. Mark the hole locations using the Sensor Bar as a template.


3. Drill and Tap the marked holes to M6X1.
4. Install the Sensor Bar using the supplied M6 screws and washers.
5. When installing, ensure that wires from the Sensor Bar face toward the centre of the basket.


6. Run the cable from both sensors through the centre of the basket and up toward the control panel.
7. Fasten cables to basket using cable ties.
